WEIPU WF16 2Pin to 10Pin Waterproof Connector, IP67 Bulkhead/Flange/Thread nut Panel Mount/Inline Cable to Cable Solder Plug Socket (Thread nut Panel Mount,7pin)

WEIPU WF16 2 3 4 5 7 9 10 pin IP67 waterproof aviation connector, industrial cable connector, Thread coupling plug socket Part number: Plug: Straight metal clamping nut: TE (IP67) Straight cable clamping nut: TI (IP67) Angle back shell metal clamping nut: TU (IP65) Angle back shell cable clamping nut: TV (IP65) Socket: Square panel: Z (IP67) Rear nut panel: ZM (IP67) Flange panel: ZG (IP67) Front nut panel: ZMQ (IP67) In-line docking metal clamping nut: ZEB (IP67) In-line docking cable clamping nut: ZIB (IP65) Gender: Plug male Socket female, Plug female Socket male. 2pin, 3pin: Rated current (A): 10A Contact diameter × quantity: Φ1.5 x2 / Φ1.5 x 3 Rated voltage (AC.V.): 500V Withstand voltage (AC.V) 1 minute: 1500V Contact resistance: 2.5mΩ Cable specification: <2m㎡/14AWG 4pin, 5pin, 7pin, 9pin, 10pin: Rated current (A): 5A Contact diameter × quantity: Φ1 x 4 / Φ1 x 5 / Φ1 x 7 / Φ1 x 9 / Φ1 x 10 Rated voltage (AC.V.): 500V(4pin, 5pin), 400V(7pin, 9pin, 10pin) Withstand voltage (AC.V) 1 minute: 1500V(4pin, 5pin) 1200V(7pin, 9pin, 10pin) Contact resistance: 5mΩ Cable specification: <0.785m㎡/18AWG (<0.75m㎡/18AWG) Coupling: Thread Coupling Shell Material: Zinc alloy with chrome plating Termination: Solder Cable outer diameter range: 5-6.5mm (metal clamping nut), 7-8mm (cable clamping nut) What's in the package: 1 x plug + 1 x socket(Square / Thread nut / flange panel with cap)(Square / flange panel with install screws)

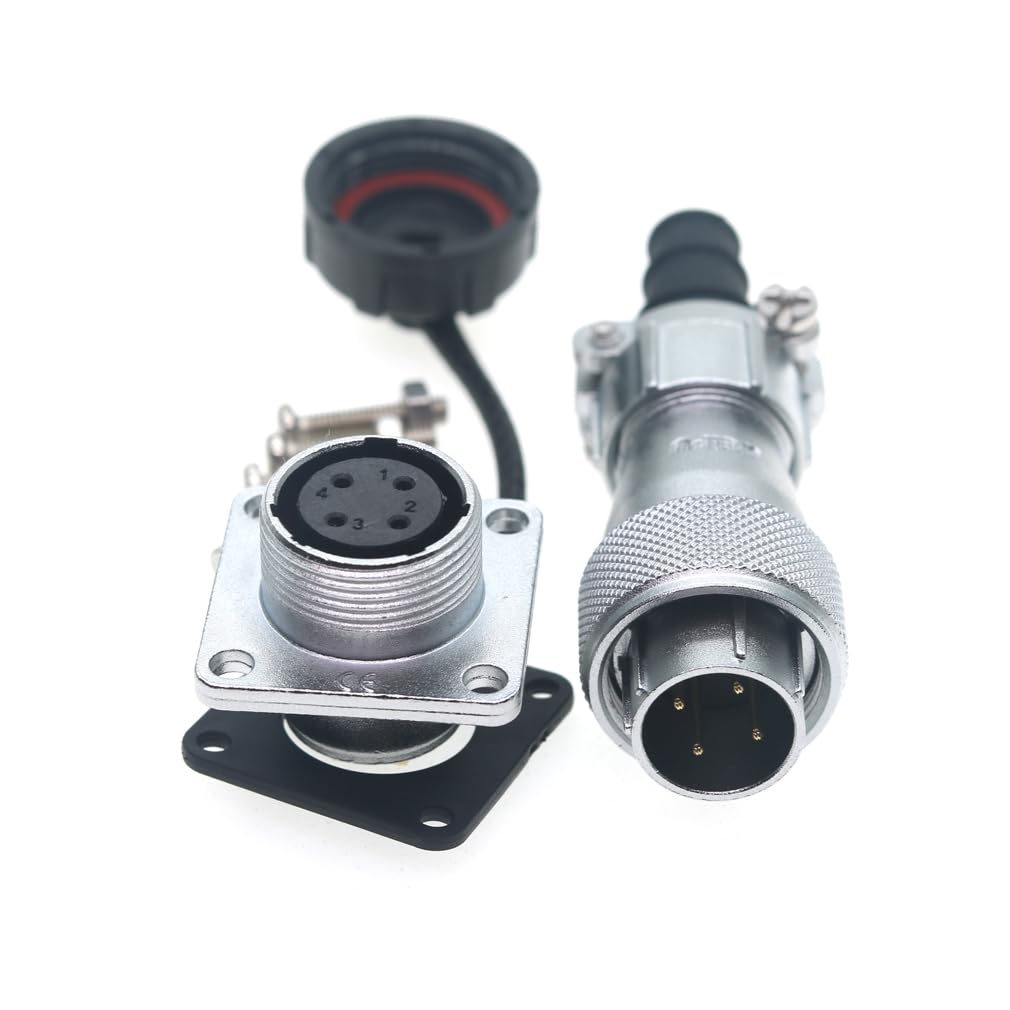

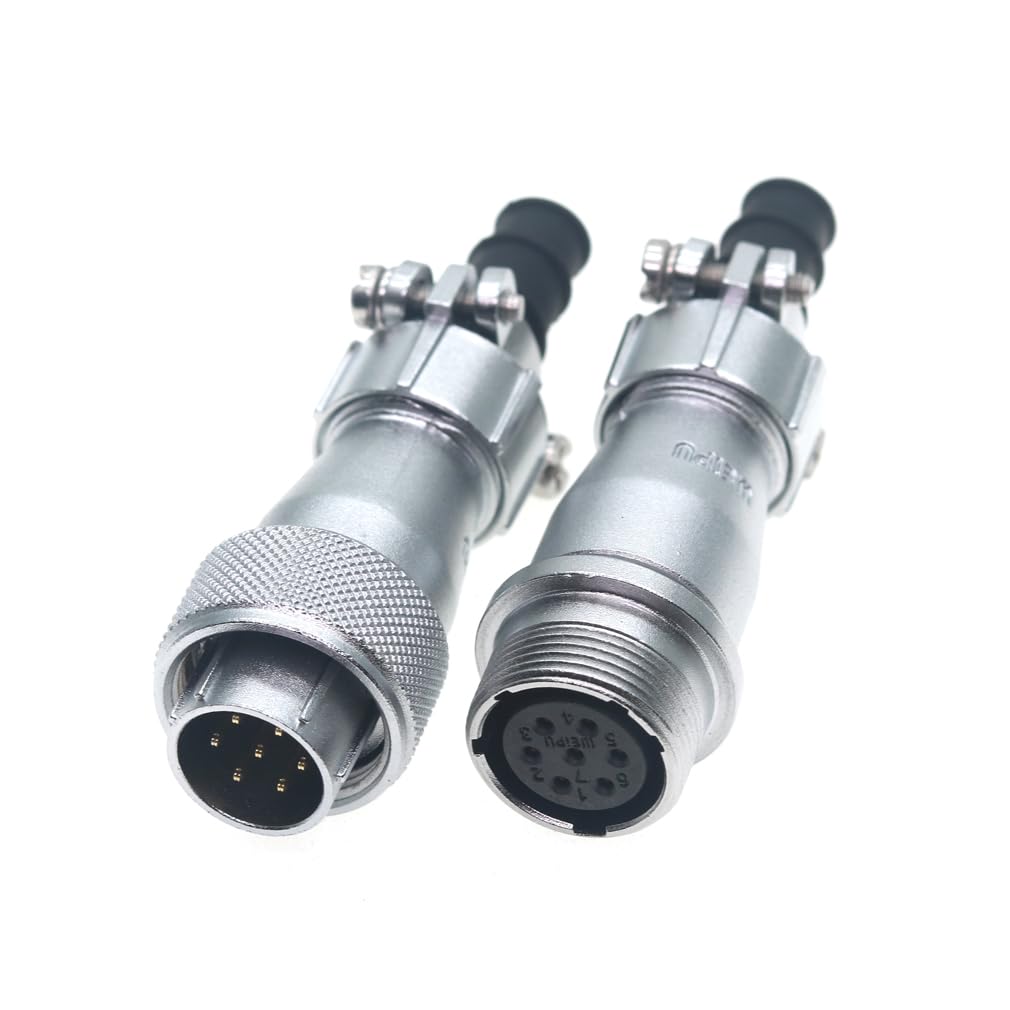

• WEIPU WF16 2 3 4 5 7 9 10 pin IP67 waterproof aviation connector, industrial cable connector, Thread coupling Square panel mount / flange panel mount / thread nut panel mount / inline cable to cable / front nut panel mount available.
• Gender: Plug male Socket female, Plug female Socket male.
• Coupling: Thread Coupling Shell Material: Zinc alloy with chrome plating Termination: Solder Cable outer diameter range: 5-6.5mm (metal clamping nut), 7-8mm (cable clamping nut)
• 16mm panel cutout, electric circular connector, with thread coupling to avoid depart during connecting, 5 position key to make sure male pin is correctly matched with female pin.
• this connector is a WEIPU original connector, with CE certificate, if your project request UL or other cetificate, please contact to confirm the details.
